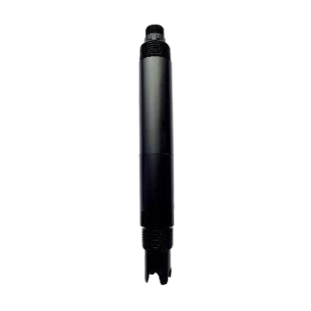

RS-485 pH Probe AT-SB-PROBE-pH-P
Datasheet
1. Introduction
SENSBLUE pH POM AT-SB-PROBE-pH-P sensor is used in environmental water quality monitoring, acid/alkali/salt solutions, chemical reaction processes, and industrial production processes. It can meet the requirements of online pH measurement for most industrial applications.
2. Features
- Signal output: RS-485 (Modbus/RTU protocol).
- Convenient connection to third-party equipment such as PLCs, DCS, industrial control computers, general controllers, paperless recorders, or touch screens.
- Double high-impedance differential amplifier with strong anti-interference capability and fast response.
- The pH probe’s internal reference solution oozes very slowly from the microporous salt bridge under a pressure of at least 100 kPa (1 bar), and its forward bleed continues for more than 20 months. Such a reference system is very stable, and the electrode life is extended by a factor of two compared to conventional industrial electrodes.
- Easy to install: 3/4 NPT pipe thread for easy submersible installation or installation in pipes and tanks.
3. Technical Specifications
| Model | pH POM AT-SB-PROBE-pH-P |
|---|---|
| Measuring Range | 0～14pH |
| Accuracy | ±0.1pH |
| Resolution | 0.01pH |
| Temperature Range | 0 ~65℃ |
| Work Pressure | ＜0.2MPa |
| Temperature Compensation | automatic temperature compensation |
| Output | RS-485, MODBUS protocol |
| Power Supply | 12～24VDC ±10% |
| Wetted Part Material | POM |
| Installation | Immersion mounting, 3/4 NPT thread |
| Cable Length | 5 m, customizable |
| Calibration Method | Two-point calibration |
| Power Consumption | ＜0.3W@12V |
| Ip Grade | IP68 |
4. Dimensions
.svg)
The sensor connector is M16-5 core waterproof male connector.
5. Installation and Electrical Connection
5.1 Install
Note: The sensor must not be installed horizontally or upside down. It should be mounted at an inclination of at least 15° to ensure correct operation.
| Pinouts | |
|---|---|
| 1 - Pin 12-24V DC | 4 - RS485 B- |
| 2 - GND | 5 – NA |
| 3 - RS485 A+ | 6 - NA |
| 7 - NA | |
6. Maintenance
6.1 Use and maintenance
When measuring with the pH sensor, it should be cleaned in distilled water (or deionized water), and filter paper should be used to absorb the moisture to prevent impurities from being introduced into the solution to be tested. One-third of the sensor should be inserted into the solution being measured. When not in use, the sensor should be washed and placed in a protective sleeve containing a 3.5 mol/L potassium chloride solution or inserted into a container with the same 3.5 mol/L potassium chloride solution. Check whether the terminal is dry. If it is stained, wipe it with absolute alcohol and allow it to dry. Avoid long-term immersion in distilled water or protein solutions and prevent contact with silicone grease. Over time, the sensor’s glass membrane may become translucent or accumulate deposits, it can be cleaned with dilute hydrochloric acid and then rinsed with water. If the sensor is used for a long period and measurement errors occur, it must be calibrated using the meter. If calibration and measurement cannot be performed even after maintaining the sensor as described above, the sensor has failed. Please replace the sensor.
Standard Buffer Ph Reference Table
| Temp(°C ) | 4.00 | 4.01 | 6.86 | 7.00 | 9.18 | 10.01 |
| 0 | 4.00 | 4.00 | 6.98 | 7.12 | 9.46 | 10.32 |
| 5 | 4.00 | 4.00 | 6.95 | 7.09 | 9.39 | 10.25 |
| 10 | 4.00 | 4.00 | 6.92 | 7.06 | 9.33 | 10.18 |
| 15 | 4.00 | 4.00 | 6.90 | 7.04 | 9.28 | 10.12 |
| 20 | 4.00 | 4.00 | 6.88 | 7.02 | 9.23 | 10.06 |
| 25 | 4.00 | 4.01 | 6.86 | 7.00 | 9.18 | 10.01 |
| 30 | 4.01 | 4.02 | 6.85 | 6.99 | 9.14 | 9.97 |
| 35 | 4.02 | 4.02 | 6.84 | 6.98 | 9.17 | 9.93 |
| 40 | 4.03 | 4.04 | 6.84 | 6.97 | 9.07 | 9.89 |
| 45 | 4.04 | 4.05 | 6.83 | 6.97 | 9.04 | 9.86 |
| 50 | 4.06 | 4.06 | 6.83 | 6.97 | 9.02 | 9.83 |
The actual reading and standard of the instrument sometimes have an error of ±1 digit.
6.2 Calibration
Note: the sensor has been calibrated at the factory, if not exceeding the measurement error, the calibration should not be random.
a.) Zero calibration
Use 250 mL of distilled water in a measuring cylinder, pour it into a beaker, add a packet of calibration powder with pH = 6.86, and stir evenly with a glass rod until the powder is completely dissolved. Prepare the solution with a pH of 6.86, place the sensor into the solution, and wait for 3–5 minutes. After the value stabilizes, check whether the displayed value is 6.86. If not, zero calibration is required. Refer to the appendix for calibration instructions.
b) Slope calibration
“For acidic solution: Take 250 mL of distilled water in a measuring cylinder, pour it into a beaker, add a packet of calibration powder with pH = 4.00, and stir evenly with a glass rod until the powder is completely dissolved. Prepare the solution to pH = 4.00. Place the sensor into the solution and wait for 3 to 5 minutes. After the value stabilizes, check whether the value is 4.00. If not, slope calibration is required. Refer to the appendix for the calibration instructions.
For alkaline solution: Take 250 mL of distilled water in a measuring cylinder, pour it into a beaker, add a packet of calibration powder with pH = 9.18, and stir evenly with a glass rod until the powder is completely dissolved. Prepare the solution to pH = 9.18. Place the sensor into the solution and wait for 3 to 5 minutes. After the value stabilizes, check whether the display shows 9.18. If not, slope calibration is required. Refer to the appendix for the calibration instructions.
7. Appendix data communication
7.1 Data Format
The default data format for Modbus communication is: 9600, n, 8, 1 (baud rate 9600 bps, 1 start bit, 8 data bits, no parity, 1 stop bit).
Parameters such as the baud rate can be customized.
7.2 Information Frame Format
a) Read data instruction frame
06 03 xx xx xx xx xx xx
Address Function code Register address Number of registers CRC check code (low byte first)
b) Read data response frame
06 03 xx xx xx xx xx xx
Address Function code Bytes Answer data RC check code (low byte first)
c) Wriite data instruction frame
06 06 xx xx xx xx xx xx
Address Function code Register address Wriite data CRC check code (low byte first)
d) Write data response frame (same data command frame)
06 06 xx xx xx xx xx xx
Address Function code Register ddress Write data CRC check code (low byte first)
7.3 Register Address
| Register Address | Name | Description | Number Of Registers | Interview Method |
|---|---|---|---|---|
| 40001(0x0000) | Measured pH + temperature | 4 double-byte integers, which are the measured pH, the measured pH number of decimal places, the temperature value, and the decimal value of the temperature value. | 4 ( 8 bytes) | Read |
| 44097(0x1000) | Zero calibration | Calibrated in a standard solution with a pH of 6.86, writing data to 0 | 1 ( 2 bytes) | Write |
| 44099(0x1002) | Slope calibration (4pH) | Calibrated in a standard solution with a pH of 4.00, writing data to 0 | 1 ( 2 bytes) | Write |
| 44101(0x1004) | Slope calibration (9.18pH) | Calibrated in a standard solution with a pH of 9.18, writing data to | 1 ( 2 bytes) | Write |
| 44103(0x1006) | Zero calibration value | The data is read out as a zero offset. | 1 ( 2 bytes) | Read |
| 44105(0x1008) | Slope calibration value | The read data is the slope value x1000 | 1 ( 2 bytes) | Read |
| 44113(0x1010) | Temperature calibration | Calibrated in solution, the data written is the actual temperature value x10 ; the read data is the temperature calibration offset x10 . | 1 ( 2 bytes) | Write/Read |
| 48195(0x2002) | Sensor address | The default is 6 and the data range is 1-127 | 1 ( 2 bytes) | Write/Read |
| 48225(0x2020) | Reset sensor | The calibration value is restored to the default value and the write data is 0. Note: the sensor needs to be calibrated again after resetting. | 1 ( 2 bytes) | Write |
Note: Modbus register address according to the protocol defined with the register type register start address (16 hex represents the actual starting address register in parentheses).
a) When changing the sensor address, the sensor address in the return command is the changed new address.
b) The data definition that returns the measured value when reading data:
xx xx xx xx xx xx xx xx
2- byte measurement 2-byte measurement / Scale value scale number 2-byte temperature value 2-byte temperature
The data type defaults to: double-byte integer, high byte first; others are optional as floating-point types.
7.4 Command example
a.) Read data instruction
Function: Obtain the pH and temperature of the measuring probe; the unit of pH is pH; the unit of temperature is °C.
Request frame: 06 03 00 00 00 04 45 BE;
Response frame: 06 03 08 00 62 00 02 01 01 00 01 24 59
Example of reading:
| pH value | Temperature value |
|---|---|
| 00 62 00 02 | 01 01 00 01 |
pH: 00 62 indicates the hexadecimal reading pH value, 00 02 indicates that the pH value has 2 decimal places and is converted to a decimal value of 0.98.
Temperature value: 01 01 indicates the hexadecimal reading temperature value, 00 01 indicates that the temperature value has 1 decimal place and is converted to a decimal value of 25.7.
b.) Calibration instructions:
Zero calibration
Function: Set the pH zero calibration value of the electrode. The zero value is based on the 6.86 pH standard. The examples are as follows;
Request frame: 06 06 10 00 00 00 8C BD
Response frame: 06 06 10 00 00 00 8C BD
Slope calibration
Function: Set the pH slope calibration value of the electrode. The slope calibration is divided into high‑point and low‑point calibration. The alkaline solution is measured at the high point, and the acidic solution is measured at the low point. The standard solutions used are 9.18 pH for the high point and 4.00 pH for the low point. Examples are as follows:
High point standard solution 9.18 pH calibration:
Request frame: 06 06 10 04 00 00 CD 7C
Response frame: 06 06 10 04 00 00 CD 7C Low
standard solution 4.00 pH calibration:
Request frame: 06 06 10 02 00 00 2D 7D
Response frame: 06 06 10 02 00 00 2D 7D
c) Set the device ID address:
Role: set the MODBUS device address of the electrode;
Change the device address 06 to 01.
The example is as follows
Request frame: 06 06 20 02 00 01 E3 BD
Response frame: 06 06 20 02 00 01 E3 BD
7.5 Error response
If the sensor does not execute the host command correctly, it will return the following format information:
| Definition | Address | Function Code | CODE | CRC check |
| data | ADDR | COM+80H | Xx | CRC 16 |
| Number
of bytes |
1 | 1 | 1 | 2 |
d) CODE : 01 – function code error
03 – data is wrong
e) COM : Received function code
8. Applicable Accessories
| Name | Requirements | |
| PA000000076 | SENSBLUE MONARCH Solar Panel 1 Probe | |
| PA000000079 | SENSBLUE MONARCH Solar Panel 2 Probes | |
| PA000000080 | SENSBLUE MONARCH Solar Panel 1 Probe External Antenna | |
| PA000000074 | SENSBLUE MONARCH Solar Panel 2 Probes External Antenna | |
| PA000000081 | SENSBLUE MONARCH Opaque Case 1 Probe | |
| PA000000082 | SENSBLUE MONARCH Opaque Case 2 Probes | |
| PA000000083 | SENSBLUE MONARCH Opaque Case 1 Probe External Antenna | |
| PA000000084 | SENSBLUE MONARCH Opaque Case 2 Probes External Antenna | |
| PA000000020 | SENSBLUE MONARCH RS485 Probe Splitter Box (1 input -> 2 outputs) |
9. Similar Products
| Name | Firmware v. | Requirements | |
| PA000000065 | SENSBLUE RS-485 Dissolved Oxygen Probe AT-SB-PROBE-DO-P-C1, w/ 15m cable w/connector | ||
| PA000000085 | SENSBLUE RS-485 Dissolved Oxygen Probe AT-SB-PROBE-DO-T-C1, w/ 15m cable w/connector | 10.70 | |
| PA000000091 | SENSBLUE RS-485 Dissolved CO2 Sensor Probe AT-SB-PROBE-CO2-P-5000-C1, w/ 15m cable w/connector | ||
| PA000000086 | SENSBLUE RS-485 Low Conductivity Probe AT-SB-PROBE-LC-P-C1, w/ 15m cable w/connector | 10.70 | |
| PA000000087 | SENSBLUE RS-485 Medium Conductivity Probe AT-SB-PROBE-MC-P-C1, w/ 15m cable w/connector | 10.70 | |
| PA000000068 | SENSBLUE RS-485 High Conductivity Probe AT-SB-PROBE-HC-P-C1, w/ 15m cable w/connector | 10.70 | |
| PA000000089 | SENSBLUE RS-485 Salinity/Conductivity/TDS Probe AT-SB-PROBE-S-P-C1, w/ 15m cable w/connector | ||
| PA000000067 | RS-485 pH Probe AT-SB-PROBE-pH-P-C1, w/ 15m cable w/conector | 10.70 | |
| PA000000088 | SENSBLUE RS-485 ORP Probe AT-SB-PROBE-ORP-P-C1, w/ 15m cable w/connector | ||
| PA000000069 | SENSBLUE RS-485 Nitrates (NO3) Probe AT-SB-PROBE-NO3-P-C1, w/ 15m cable w/connector | 10.70 | |
| PA000000090 | SENSBLUE RS-485 Ammonia Nitrogen (NH4-N) Sensor Probe AT-SB-PROBE-NH4-P-C1, w/ 15m cable w/connector | ||
| PA000000066 | SENSBLUE RS-485 Turbidity Probe AT-SB-PROBE-T-P-C1, w/ 15m cable w/connector | 10.70 | |
| PA000000073 | SENSBLUE RS-485 Multiparameter Probe AT-SB-PROBE-MP-P-C1, w/ 15m cable w/connector | 10.71 |
10. Applicable certifications and standards
EMC Directive 2014/30/EU.
- EN IEC 61326-1: 2021
- EN 55011: 2016+A2: 2021
- EN IEC 61000-3-2: 2019+A1: 2021
- EN 61000-3-3: 2013+A2: 2021
